Liquid File Changes

Overview​

Caratwise stores internal data as line item properties prefixed with _. These should be hidden from customers, while relevant data can be displayed in a user-friendly format.

Note: File names may vary depending on your theme.

1. Hide Internal Properties​

Filter out _ prefixed properties so customers don't see internal Caratwise data.

Files to Update​

  • sections/cart-items.liquid
  • sections/main-cart-items.liquid
  • snippets/cart-line-item.liquid

Default Code (Before)​

{% for p in item.properties %}
  {{ p.first }}: {{ p.last }}
{% endfor %}
{% for p in item.properties %}
  {% unless p.first == blank or p.first == '' %}
    {% unless p.first contains '_' %}
      <div class="product-option">
        <dt>{{ p.first }}:</dt>
        <dd>{{ p.last }}</dd>
      </div>
    {% endunless %}
  {% endunless %}
{% endfor %}

Sample Line Item Property Data​

Wedding Band (Left):

{
  "_caratwise_uuid": "xgrm5njzkf",
  "_left_band_price": 920,
  "_band_type": "left_band",
  "_ring_image": "https://cdn.shopify.com/...",
  "_ring_title": "Lab Grown Diamond Wedding Band in 14K Rose Gold",
  "_b_tcw": "0.66",
  "_b_fit": "Perfect Match",
  "_b_engraving": "",
  "_b_material": "14K Rose Gold"
}

Wedding Band (Right):

{
  "_caratwise_uuid": "xgrm5njzkf",
  "_right_band_price": 920,
  "_band_type": "right_band",
  "_ring_image": "https://cdn.shopify.com/...",
  "_ring_title": "Lab Grown Diamond Wedding Band in 14K Rose Gold",
  "_b_tcw": "0.66",
  "_b_fit": "Perfect Match",
  "_b_engraving": "",
  "_b_material": "14K Rose Gold"
}

Engagement Ring:

{
  "_caratwise_uuid": "xgrm5njzkf",
  "_diamond_variant": "52264610038036",
  "_ring_price": 1370,
  "_diamond_price": 1509,
  "_diamond_title": "2.01 ct. Round Lab Grown Diamond",
  "_diamond_image": "https://loupe.diam.me/...",
  "_ring_image": "https://cdn.shopify.com/...",
  "_ring_title": "Mavis Lab Grown Diamond Engagement Ring in 14K Rose Gold",
  "_d_carat": 2.01,
  "_d_color": "F",
  "_d_clarity": "VVS2",
  "_d_cut": "EX",
  "_d_shape": "Round",
  "_d_cert": "IGI",
  "_d_cert_url": "",
  "_r_size": "5+1⁄4",
  "_r_engraving": "",
  "_r_tcw": "0.468",
  "_r_shank": "14K Rose Gold",
  "_r_head": "14K Rose Gold"
}

2. Show Custom Title in Cart​

Display a friendly product name instead of the default Shopify product title.

Files to Update​

  • sections/cart-items.liquid
  • sections/main-cart-items.liquid
  • snippets/cart-line-item.liquid

Code​

{% if item.properties._ring_title != blank %}
  {{ item.properties._ring_title }}
{% elsif item.properties._left_band_price != blank or item.properties._band_type == 'left_band' %}
  Wedding Band (Left)
{% elsif item.properties._right_band_price != blank or item.properties._band_type == 'right_band' %}
  Wedding Band (Right)
{% else %}
  {{ item.product.title }}
{% endif %}

3. Show Inventory Error Message​

Display a stock availability message when a diamond is no longer available.

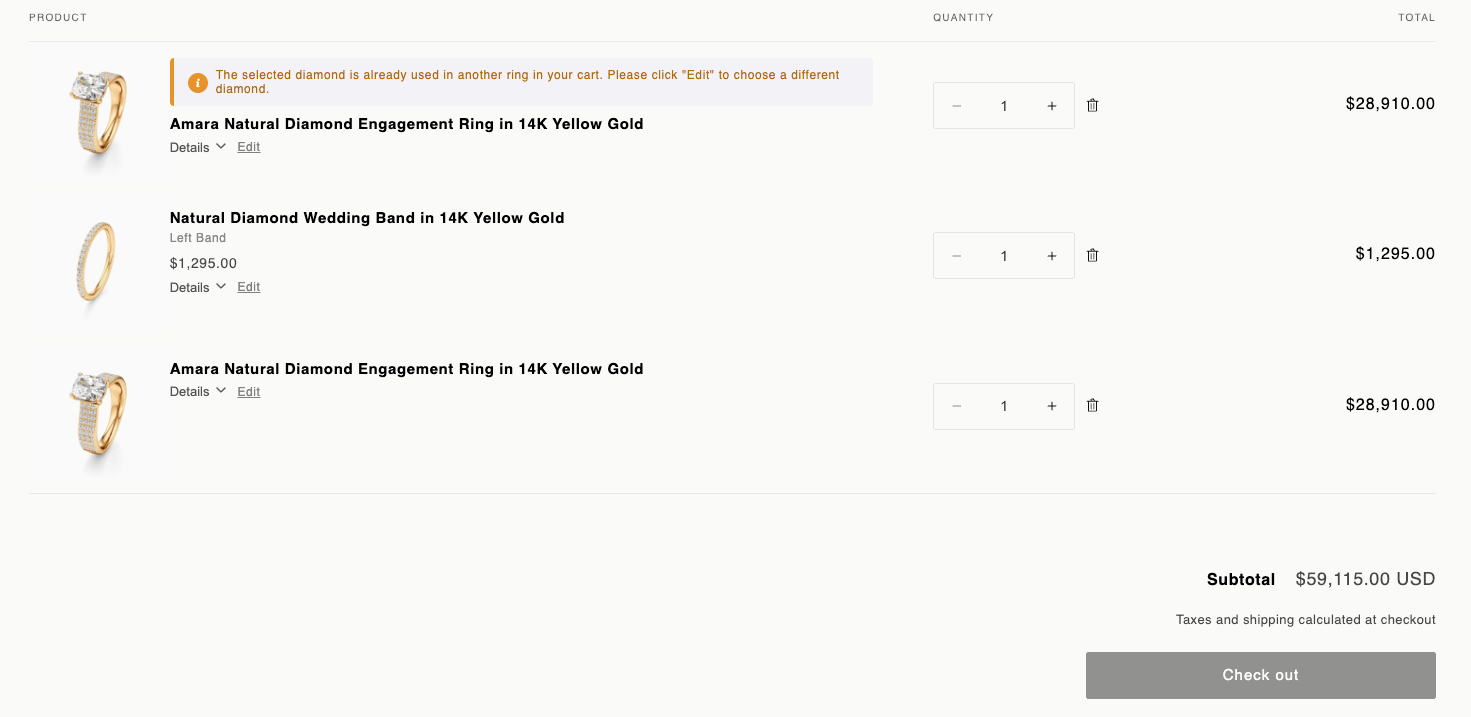

Diamond Not Available

Files to Update​

  • snippets/cart-drawer.liquid
  • sections/main-cart-items.liquid

Code​

{%- if item.properties._caratwise_uuid != blank -%}
  <div id="cw-inventory-msg-{{ item.properties._caratwise_uuid }}" class="cw-error-msg"></div>
{%- endif -%}

4. Show Product Image in Cart & Mini Cart​

Display the custom ring image instead of the placeholder product image.

Files to Update​

  • snippets/cart-drawer.liquid
  • sections/main-cart-items.liquid

Code​

{%- if item.properties._ring_image != blank -%}
  <img
    src="{{ item.properties._ring_image | escape }}"
    class="cart-item__image"
    alt="{{ item.product.title | escape }}"
    loading="lazy"
    width="150"
    height="150">
{%- elsif item.image -%}
  <img
    src="{{ item.image | image_url: width: 300 }}"
    class="cart-item__image"
    alt="{{ item.image.alt | default: item.product.title | escape }}"
    loading="lazy"
    width="150"
    height="{{ 150 | divided_by: item.image.aspect_ratio | ceil }}">
{%- endif -%}

Allow customers to return to the builder and modify their customized ring.

Files to Update​

  • snippets/cart-drawer.liquid
  • sections/main-cart-items.liquid

Code​

{%- if item.properties._caratwise_edit_url != blank -%}
<a href="{{ item.properties._caratwise_edit_url }}"
   class="cw-edit-btn"
   onclick="sessionStorage.setItem('cw_edit_mode','1');sessionStorage.setItem('cw_edit_old_uuid','{{ item.properties._caratwise_uuid }}')">
  Edit
</a>
{%- endif -%}

Prevent customers from clicking through to the hidden placeholder product page.

Files to Update​

  • snippets/cart-drawer.liquid
  • sections/main-cart-items.liquid

Code​

{%- if item.properties._caratwise_uuid -%}
<a href="javascript:void(0);" class="cart-item__name h4 break">
  {{ item.product.title | escape }}
</a>
{%- endif -%}

Full Cart & Mini Cart Reference​

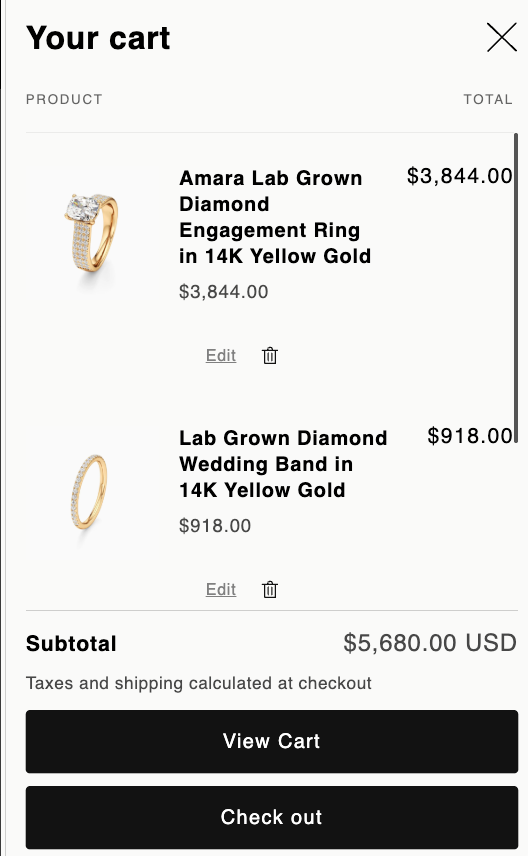

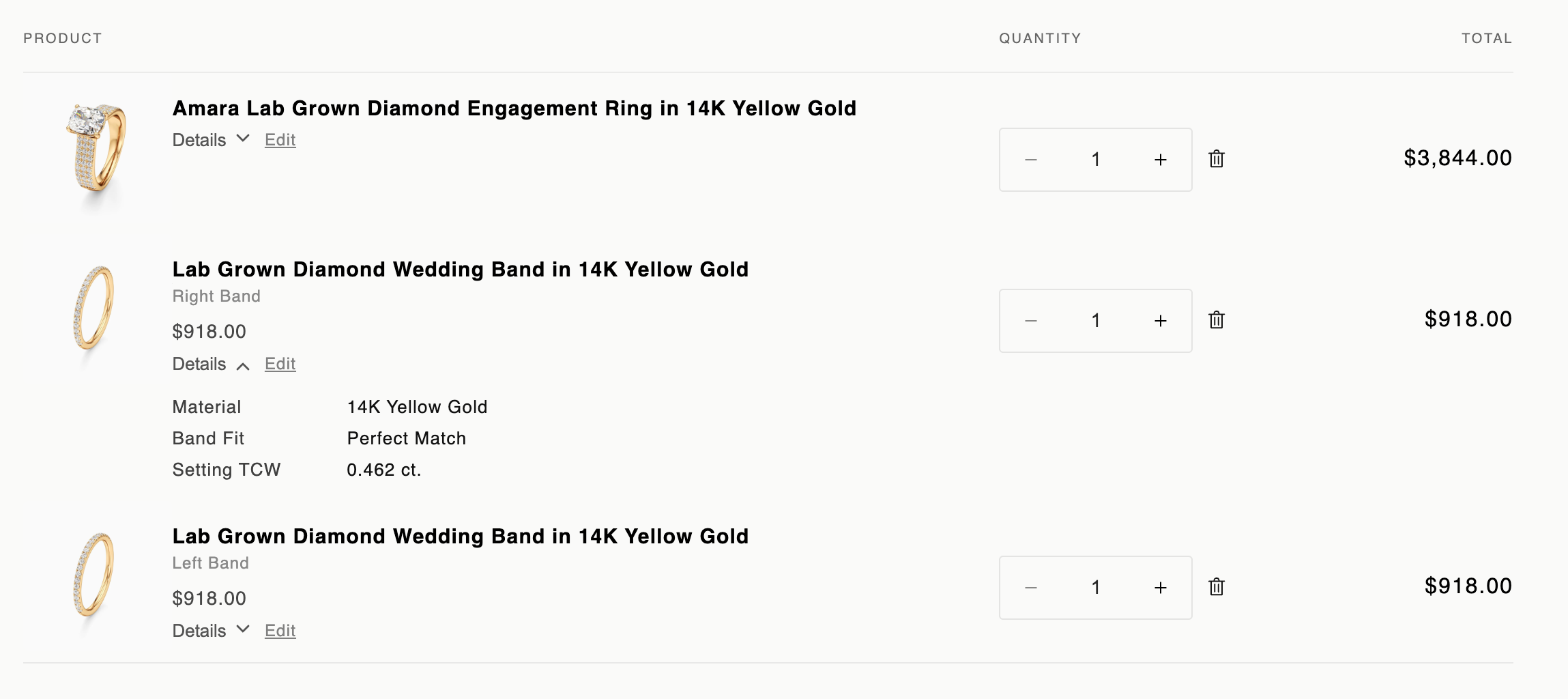

Cart Page Mini Cart
